Remote Controlled Fire Fighting Mobile Robot L1

Fire Fighting Robot L1 is composed of a robot body, top-mounted equipment - water cannon, smoke exhaust fan, various sensors, supplies delivery basket, robotic arm - a remote control terminal, and an integrated management and control cloud platform. It integrates the functions of fire extinguishing, smoke exhaust, reconnaissance, explosion removal, demolition, and material transportation. With innovative system design concepts, the loading equipment has standard control interfaces & fast loading and unloading interfaces. Higher efficiency. Multiple uses. Lower cost.

  • Item NO.:

    L1
  • Payment:

    T/T: Western Union
  • Product Origin:

    China
  • Color:

    Red
  • Product Detail

Remote Controlled Fire Fighting Mobile Robot L1

Fire Fighting Robot L1 is composed of a robot body, top-mounted equipment - water cannon, smoke exhaust fan, various sensors, supplies delivery basket, robotic arm - a remote control terminal, and an integrated management and control cloud platform. It integrates the functions of fire extinguishing, smoke exhaust, reconnaissance, explosion removal, demolition, and material transportation. With innovative system design concepts, the loading equipment has standard control interfaces & fast loading and unloading interfaces. Higher efficiency. Multiple uses. Lower cost.


Parameters

Size
1400×1000×400mm(without top mounted equipment)
Total Weight
600kg(without top mounted equipment)
Transmission Method
Planetary gear reducer
Ground Clearance
95mm
Obstacle Height
290mm
Gradeability
83.9%
Battery Life
2h (running non-stop); 5-10h(Static work; depends on payloads)
Loading Capacity
500kg
Running Speed
0-3.6km/h(infinitely variable speeds)
Cooling System
Air cooling
Control Method
Wireless remote control(intervisibility≥1000m)
Traction
5200N

Product Photos

With innovative system design concepts, the loading equipment has standard control interfaces & fast loading and unloading interfaces. Higher efficiency. Multiple uses. Lower cost.


Features

  • Modular structure adopted for chasis. Convenient for maintenance
  • Robot body adopts 16mm steel closed structure & waterproof design applicable to various complex environments
  • Carry and tow two 100m long & φ80 hoses filled with water with great traction to work under dangerous situations
  • HD video transmission to realize remote monitoring
  • With LoRa wireless communication technology, it features long communication distance & strong anti-interference
  • Strong obstacle crossing ability, able to climb obstacles at a large angle
  • Strong mobility, & fast moving & adjustable speed
  • Accessible to integrated management and control cloud platform

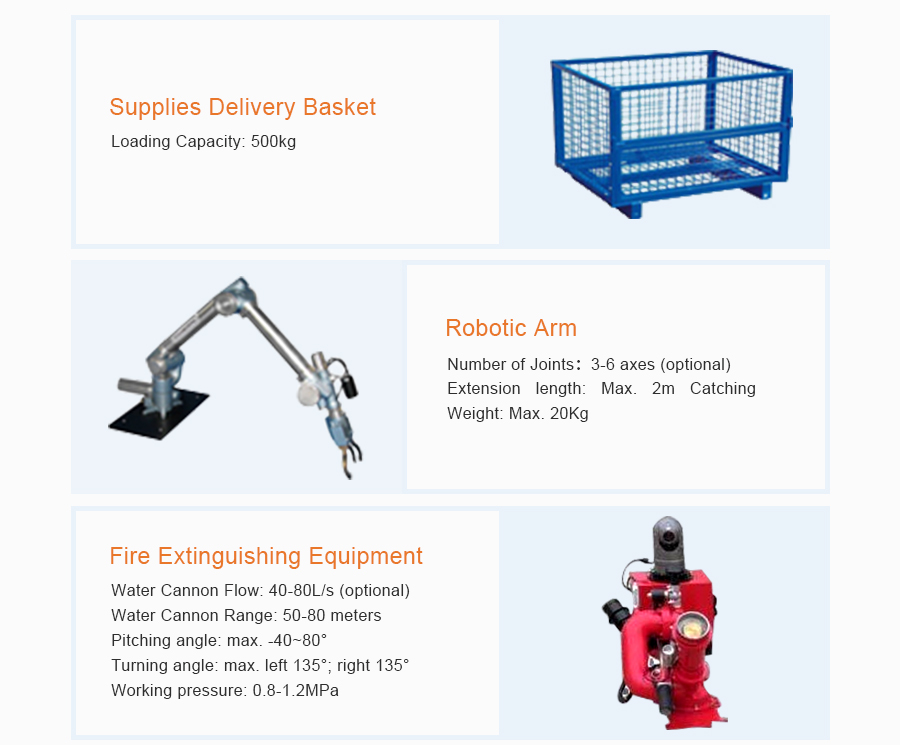

Payloads

Supplies Delivery Basket
Robotic Arm
Fire Extinguishing Equipment

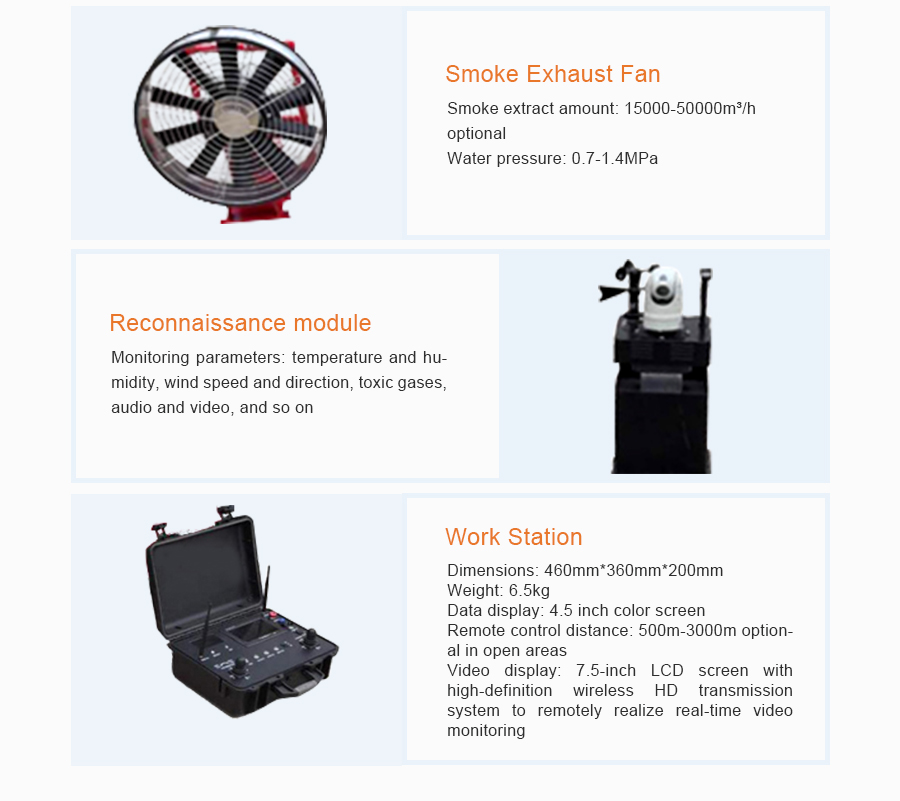

Smoke Exhaust Fan
Reconnaissance Module
Work Station
